Ascension for Microplastics Depth Sampling

Easily monitor freshwater and marine microplastic pollution down to 400 meter depths

Remove Barriers To Collect Microplastics At Depth

Microplastic pollution threatens freshwater and marine environments. To inform and monitor effective solutions, researchers and citizen scientists need more reliable data.

Since studies suggest that 99.8% of oceanic plastic sinks below the ocean's surface, it's crucial to collect and analyze microplastics at depth—something that has traditionally been extremely challenging.

Ascension_eDNA-39

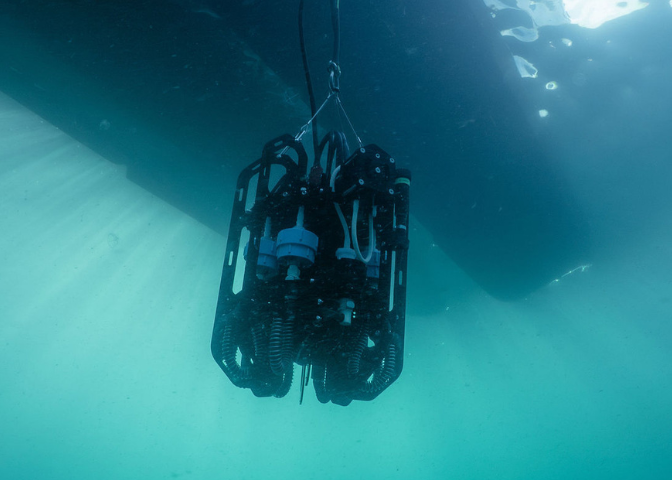

View of the Ascension depth sampler from below as it is lowered into the ocean from a small boat

The Ascension Microplastics Depth Sampler

​Ascension is a portable, automated instrument capable of collecting 7 separate filtered microplastic samples per deployment down to 400-meter depths from the side of a small vessel or fixed installation. Filtering water directly in situ, Ascension significantly increases microplastic sampling capabilities and reduces contamination.

Collect Reliable Data

check-icon

Operate in real-time deployment mode or upload an automated mission for autonomous time-series sampling

check-icon

Minimize filter handling and sample contamination by filtering directly in situ

check-icon

Recharge the battery to maximize deployment time and reduce primary battery waste

Manually lower and raise through the water column by hand-- no need for winch systems

Capture conductivity, temperature, salinity,  depth and filtration volumes in real time with the on-board CTD sensor and flow meter

Smart interface with no confusing terminal commands

Ascension_eDNA-1

Product Specifications

Checkmark icon
Dry Weight: 10 Kg (22 lbs)
Checkmark icon
Depth Rating: 400m
Checkmark icon
Tether Length: 50, 100 or 200 m
Checkmark icon
Battery: 266 W-Hr. rechargeable LIPO batter
Checkmark icon
External Sensors: Star-Oddi DST DCT Online
Checkmark icon
Temperature Range: -1°C to +40°C (30°F to 104°F)
Checkmark icon
Temperature Resolution: 0.032°C (0.058°F)
Checkmark icon
Temperature Accuracy: +/- 0.1°C (0.18°F)
Checkmark icon
Depth Range: 5-500m
Checkmark icon
Depth Resolution: 0.03% of depth range
Checkmark icon
Depth Accuracy: +/- 0.6% of depth range
Checkmark icon
Salinity Range: 3-68 mS/cm
Checkmark icon
Salinity Resolution: 0.02 PSU
Checkmark icon
Salinity Accuracy: +/- 1 PSU
Checkmark icon
Acceptable Filter Pore Size: >10 µm
Checkmark icon
Pump Type: High flow impeller
Checkmark icon
Flow Meter Range: 0.2 – 4.5 litres per minute
Checkmark icon
Typical Flow Rates: 0.5 – 4.5 litres per minute
Checkmark icon
Flow Meter Accuracy: +/- 1.5%
Checkmark icon
Number of Filter Channels: 7
Checkmark icon
System Requirements: Windows 10/11 laptop with Bluetooth capability

Automation, real-time sensing capabilities and in-situ filtration

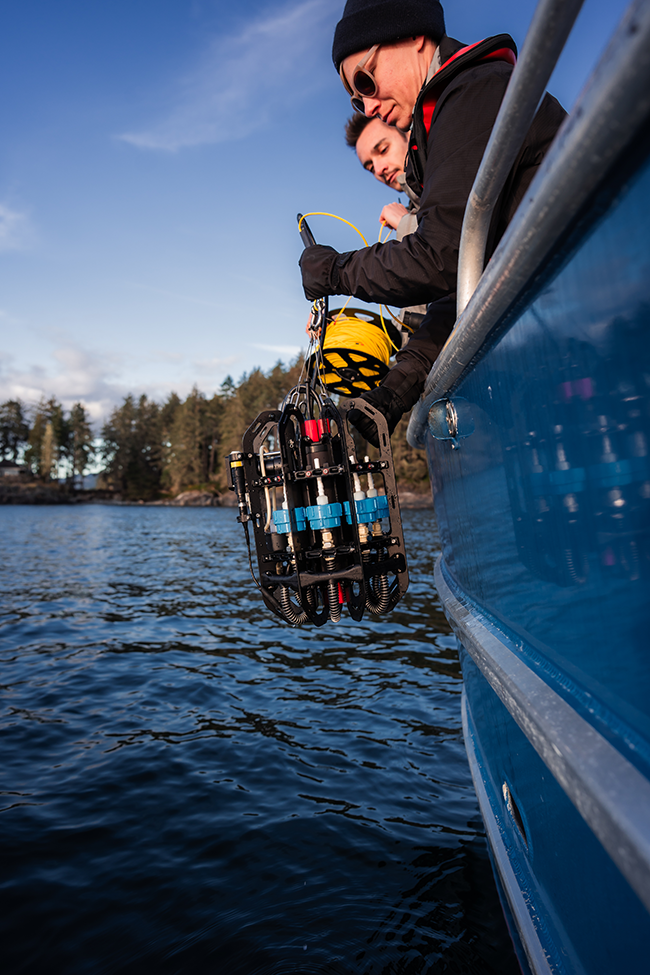

Ascension microplastics sampler

 “The best place to look for information is going to be at depth. Ascension is really one of the only ways that we can get our hands on those deeper samples given the platforms of opportunity available to us for this project.” - Eily Allan, University of Washington School of Marine and Environmental Affairs

“Ascension took away a barrier for the skills needed for sampling. It is foolproof compared to other equipment. I was really excited. I can’t believe the data we’ll get!" - Susan Anthony, SeaChange Society
