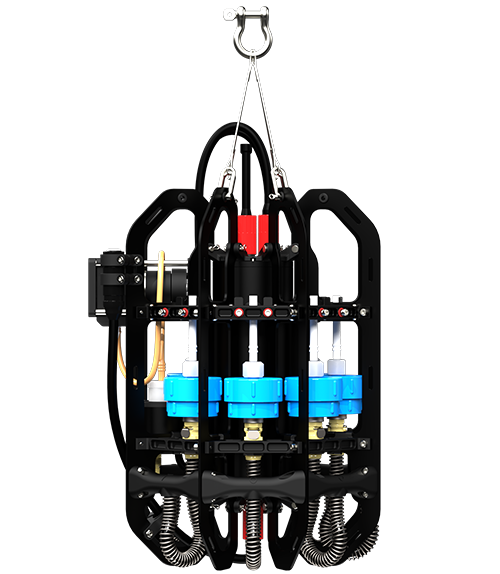

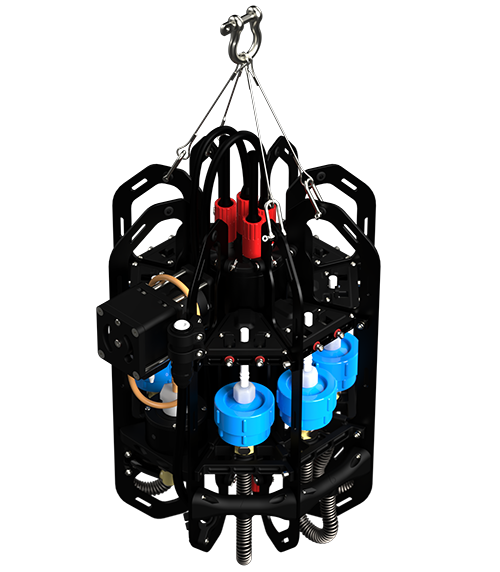

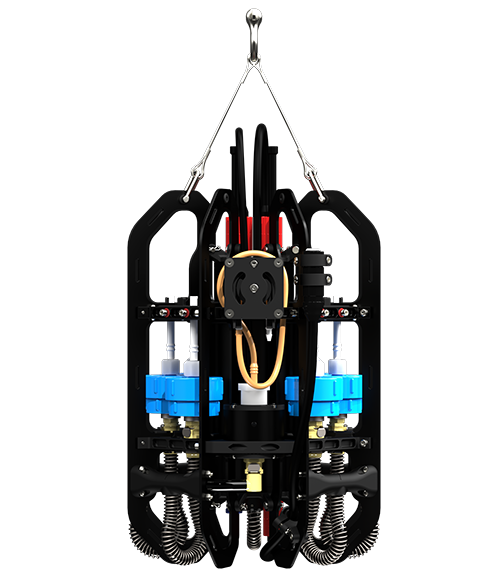

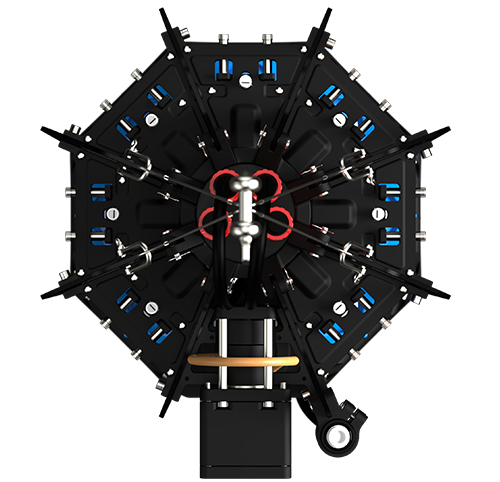

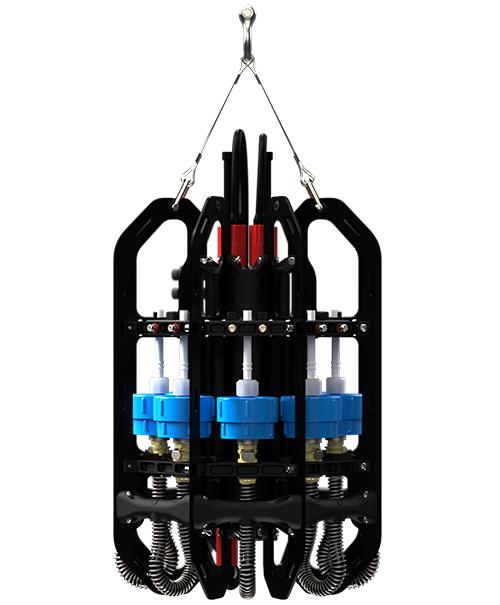

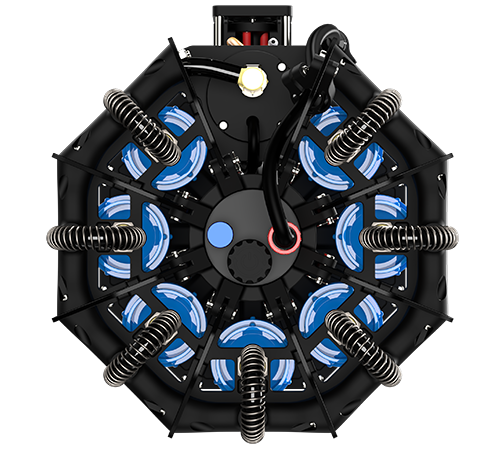

Ascension | Environmental DNA Depth Sampling Technology

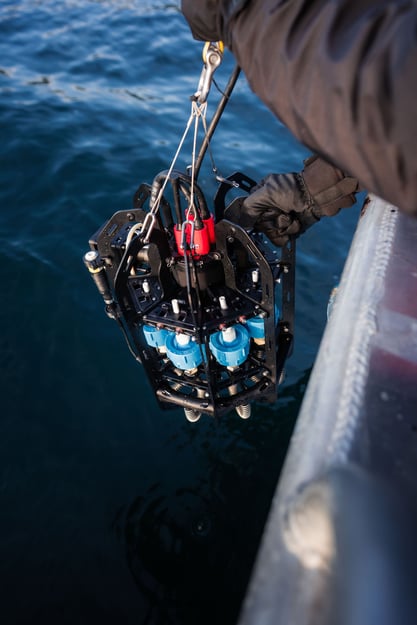

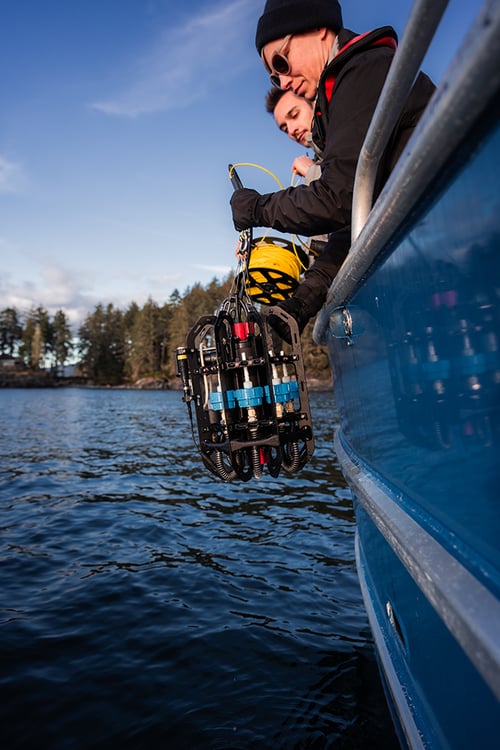

Deploy by hand from a small boat down to 400-meter depths

Pre-program and attach to a fixed installation for automated sampling

Collect up to 7 separate samples per deployment or include replicates for every deployment

Eliminate sample contamination risks with in-situ filtration

Capture real-time depth, salinity, temperature, flow rate and total volume data every second

Recharge the battery within 2-3 hours using a standard wall outlet

Make on-the-fly changes during your deployment with an easy-to-use computer interface

Dry Weight: 10 Kg (22 lbs)
Depth Rating: 400m
Tether Length: 50, 100 or 200 m
Battery: 266 W-Hr. rechargeable LIPO batter
External Sensors: Star-Oddi DST DCT Online
Temperature Range: -1°C to +40°C (30°F to 104°F)
Temperature Resolution: 0.032°C (0.058°F)
Temperature Accuracy: +/- 0.1°C (0.18°F)
Pump Type: High-pressure peristaltic
Depth Range: 5-500m
Depth Resolution: 0.03% of depth range
Depth Accuracy: +/- 0.6% of depth range
Salinity Range: 3-68 mS/cm
Salinity Resolution: 0.02 PSU
Salinity Accuracy: +/- 1 PSU
Acceptable Filter Pore Size: >0.45 µm
Flow Meter Range: 0.05 – 0.5 litres per minute
Typical Flow Rates: 0.05 – 0.5 litres per minute

"You can just go out with the Ascension device and sample quite easily on the tender itself. It opens a lot more doors for end users to implement eDNA into their (biodiversity) monitoring.”

Marcelle Ayad

Research Analyst | Minderoo Foundation

“Ascension took away a barrier for the skills needed for sampling. It is foolproof compared to other equipment. I was really excited. I can’t believe the data we’ll get!"

Dr. Susan Anthony

Project Manager | SeaChange Society

“The best place to look for information is going to be at depth. Ascension is really one of the only ways that we can get our hands on those deeper samples given the platforms of opportunity available to us for this project.”
